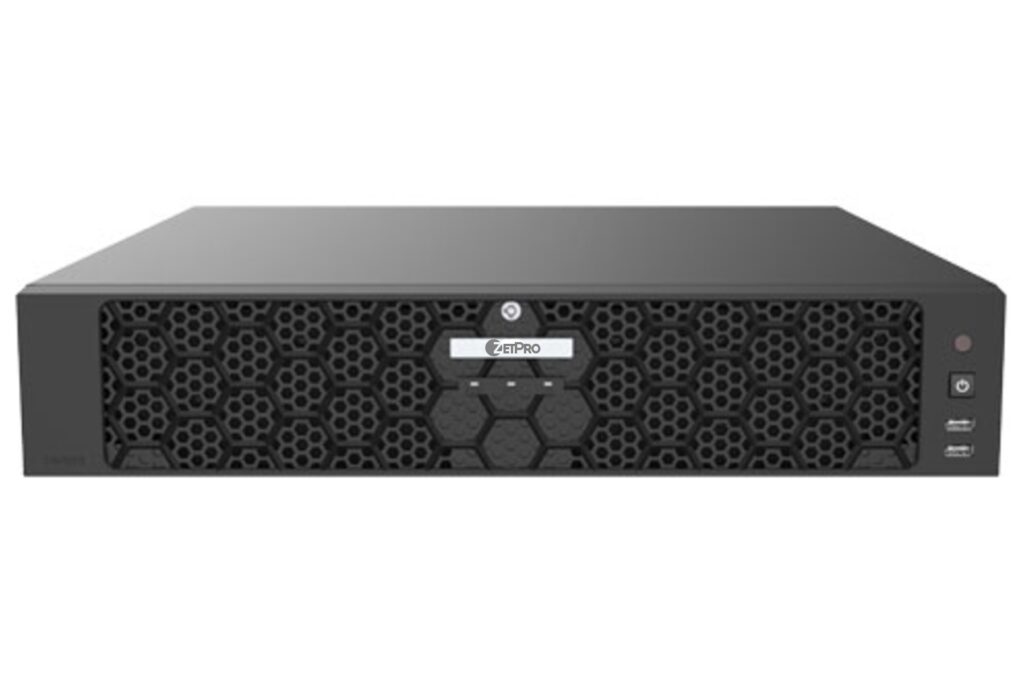

Smart IP video recorder ZIP-NVR408-64E-PRO
Smart IP video recorder ZIP-NVR408-64E-PRO – 64 channels, with a recording resolution of 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF for each channel. Hardware compression Ultra 265 /H.265/H.264. 2 RJ45 10M/100M/1000M. The ability to connect up to 8 SATA HDDs with a volume of up to 10TB each, RAID support . ANR function . Alarm inputs – 16/outputs – 4. Smart IP video recorder ZIP-NVR408-64E-PRO has P2P cloud service. Simple and convenient interface. Full-fledged WEB interface. E-mail message. Guard Station client application for Windows/MAC.
- Record 64 IP cameras
- 2 video outputs HDMI 1(4K), HDMI2(4K), VGA(FHD)
- Support for IP cameras with a resolution of up to 12 Mpix.
- H.264/H.265/Ultra H.265 encoding
- Support for 8 SATA hard drives up to 10TB (RAID)
- Support ONVIF (Profile S, Profile G, Profile T )
- Power output 12 V
- Support P2P, UPnP, NTP, DHCP, PPPoE, 3G/4G
- Guard Viewer mobile application
- Guard Station PC application
| Video and Audio | |
| Channels | 64 channels |
| audio | 1-channel, RCA |
| Network parameters | |
| Input bitrate | 384 Mbs |
| Output bitrate | 384 Mbs |
| Remote users | 128 |
| Video and Audio options | |
| HDMI/VGA outputs | VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840×2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600×1200/60Hz, 1280×1024/60Hz, 1280×720/60Hz, 1024×768/60Hz |
| Record permission | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Audio output | 1-channel, RCA |
| Simultaneous viewing | 16 channels |
| Corridor mode | 3/4/5/7/9/10/12/16/32 |
| Compression | |
| compression | Ultra 265, H.265, H.264 |
| Record | 12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF |
| Live display | 2 x 12MP@30, 4 x 4K@30, 8 x 4MP@30, 9 x 4MP@25, 16 x 1080P@30, 32 x 960P@25, 36 x 720P@30, 64 x D1 |
| Input interfaces | |
| Network interface | 2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interfaces |
| Serial Interface | 1 x RS232, 1 x RS485 |
| USB interface | 2 x USB2.0, 1 x USB3.0 |
| An alarming output | 16 |
| Alarm input | 4 |
| Hard drive | |
| SATA | 8 SATA interfaces |
| Volume | Up to 10 TB for one disk |
| eSATA | 1 eSATA |
| Disk array | RAID 0, 1, 5, 6, 10 |
| general | |
| Power | 100 ~ 240 VAC |
| Consumption | ≤ 25 W (without HDD) |
| Working temperature | -10°C ~ + 55°C |
| Humidity | 10% ~ 90% |
| Dimensions | 442×426×89 mm |
| Weight (without disc) | ≤ 5.7 Kg |
