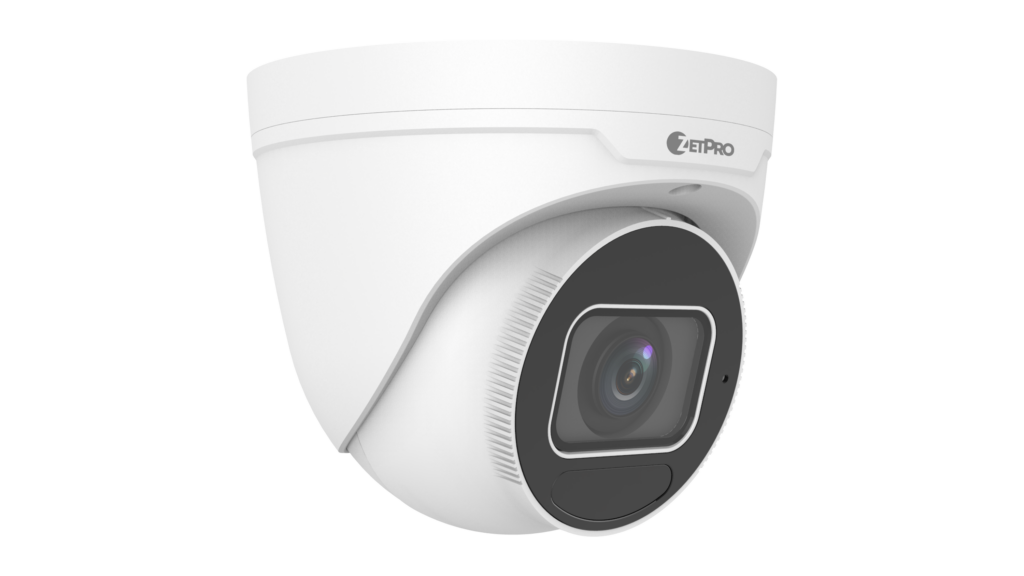

Smart IP camera 5MP ZIP-3635AI-DM-MVF

Smart IP camera 5 mp ZIP-3635AI-DM-MVF is presented in a strong iron case. AI analytics on board the camera: person detection, invasion zone, people counting, etc. Built-in microphone. The camera is equipped with a 1/2.7″, 5.0 megapixel, progressive scan, CMOS sensor. WDR 120DB. The signal is encoded using several codecs: H.264/H.265/Ultra H.265,  smart code . Motorized lens 2.7-13.5mm. The minimum illumination is 0.002 lux in color mode. Operating temperature from -30 to +60, humidity 10-90%. Adaptive IR illumination 40 meters


  • Mechanical IR filter (day/night)
  • Adaptive IR illumination with a range of up to 40 m
  • 3D DNR noise reduction system

Video

  • Compression format – Ultra H.265/H.265/H.264/MJPEG
  • Simultaneous transmission of three video streams
  • Region of Interest (  ROI  )
  • Illumination Compensation (  HLC  )

Compatibility

  • ONVIF protocol support

Terms of use

  • Operating temperature from -30 to +60 °C
  • Power supply 12 V DC or POE
  • Degree of protection IP67
  • Vandal protection IK10
ZIP-3635AI-DM-MVF
Camera
Max Resolution 5 MP
Sensor 1/2.7″ CMOS
Min. Illumination Colour:0.002 lux (F1.2, AGC ON)
0 lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Shutter Auto/Manual, 1 ~ 1/100000s
Adjustment Angle Pan: 0° ~ 360°, Tilt:0° ~ 75°, Rotate: 0° ~ 360°
S/N >52 dB
WDR 120 dB
Lens
Focal Length 2.7 to 13.5 mm
Iris Type Fixed
Iris F1.2
Field of View (H) 106.3°~ 32.5°
Field of View (V) 53.5°~ 18.0°
Field of View (D) 126.0°~ 38.5°
Lens Type Motorized
DORI
DORI Distance (Lens) 2.7mm, 13.5mm
DORI Distance (Detect) 60.8m(199ft), 303.8m(996.7ft)
DORI Distance (Observe) 24.3m(79.7ft), 121.5m(398.6ft)
DORI Distance (Recognize) 12.2m(40ft), 60.8m(199.5ft)
DORI Distance (Identify) 6.1m(20ft), 30.4m(99.7ft)
Illuminator
Supplemental Light IR
Illumination Distance (IR) 40 m (131.2 ft)
Wavelength 850 nm
Light On/Off Control Auto/Manual
Video
Video Compression Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile Baseline profile, Main profile, High profile
Frame Rate Main Stream: 4MP (2688*1520), Max 30fps;4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps;
Sub Stream: 720P (1280*720), Max 30fps; D1 (720*576), Max 30fps; 640*360,Max 30fps;
Third Stream: D1 (720*576), Max 30fps; 640*360,Max 30fps; 2CIF(704*288), Max 30fps; CIF(352*288), Max 30fps
Video Bit Rate 128 Kbps to 16 Mbps
Smart-code Support
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Support
Video Stream Triple Streams
Smart IR Support
White Balance Auto, Outdoor, Fine Tune, Sodium Lamp, Locked, Auto2
Digital Noise Reduction 2D/3D DNR
Flip Normal, Flip Vertical, Flip Horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping N/A
HLC Support
BLC Support
Defog Digital Defog
Intelligent
Smart Intrusion Prevention Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting Support People Flow Counting and Crowd Density Monitoring
Statistical Analysis N/A
Events
Basic Detection Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
General Function Watermark, IP Address Filtering, Access Policy, ARP Protection, RTSP Authentication, User Authentication, HTTP Authentication
Audio
Audio Compression G.711U, G.711A
Audio Bitrate 64 Kbps
Two-way Audio N/A
Suppression Support
Sampling Rate 8 kHz
Storage
Edge Storage Micro SD, up to 512 GB
Network Storage ANR, NAS (NFS)
Network
Protocols IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, PPPoE
Compatible Integration ONVIF (Profile S, Profile G, Profile T, Profile M),
API, SDK
User/Host Up to 32 users. 3 user levels: administrator, common user and operator
Security Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client Guard Live, Guard Station, ZetPro VMS
Web Browser Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Interface
Audio I/O N/A
Alarm I/O N/A
Serial Port N/A
Built-in Mic Support
Built-in Speaker N/A
WIFI N/A
Network 1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output N/A
General
Power DC 12V±25%, PoE (IEEE 802.3af)
Power Consumption Max 7.0W
Power Interface Ø5.5 mm coaxial power plug
Dimensions Ø129 x 110mm (Ø5.1” x 4.3”) (Ø x H)
Weight 0.70kg (1.52lb)
Material Metal
Protection IP67 (IEC 60529)

IK10 (IEC 62262)

Working Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Storage Environment -30 ℃ to 60 ℃ (-22 ℉ to 140 ℉), Humidity: ≤ 95% RH (non-condensing)
Surge Protection 6 KV
Reset Button Support
