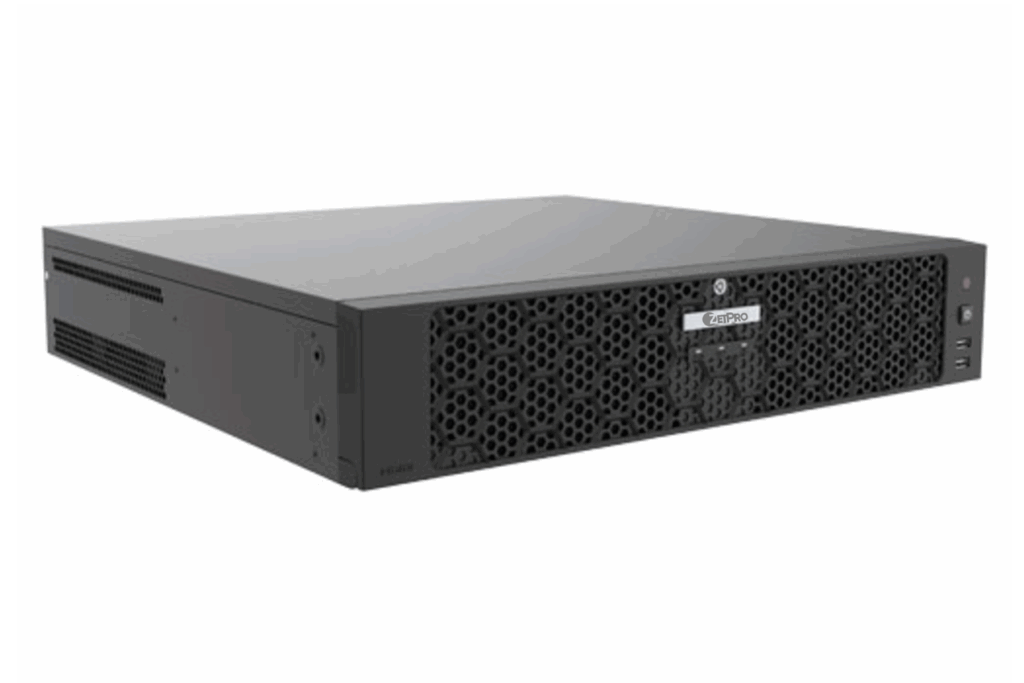

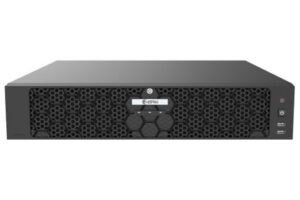

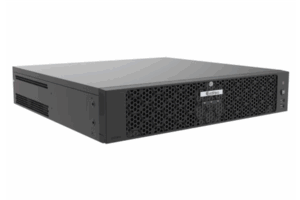

Smart IP Video Recorder ZIP-NVR708-64AI-PRO
Smart IP Video Recorder ZIP-NVR708-64AI-PRO – a professional 64-channel network video recorder supporting Ultra 265 / H.265 / H.264 compression formats and recording up to 32 MP per channel.
Equipped with 2 HDMI (4K) and 2 VGA (Full HD) video outputs with independent display capability.
Supports up to 8 SATA HDDs of 16 TB each, RAID 0/1/5/6/10, hot-swap disks, and N+1 redundancy. Optional backup power supply is available.
Compatible with ONVIF (Profile S/G/T) and RTSP IP cameras.
Supports P2P, cloud upgrade, ANR, WEB interface, E-mail notifications, Guard Station apps (Windows/Mac).
-
Support for up to 64 IP cameras
-
Dual video outputs: HDMI1 (4K), HDMI2 (4K) + VGA (Full HD)
-
Video recording resolution up to 32 MP
-
Video compression: Ultra 265 / H.265 / H.264
-
Support for 8 SATA HDDs up to 16 TB each (total capacity up to 128 TB)
-
Support for RAID 0/1/5/6/10, hot-swap HDD, N+1 redundancy
-
Compatibility with IP cameras via ONVIF (Profile S, G, T) and RTSP
-
Backup power supply (optional), 12 V power input
-
Network support: P2P, UPnP, NTP, DHCP, PPPoE, 3G/4G
-
Cloud firmware upgrade
-
Mobile app: Guard Live
-
PC client: Guard Station (Windows / Mac)
-
User-friendly WEB interface
| Model | ZIP-NVR708-64AI-PRO |
| Decoding | |
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30 |
| Decoding Capability | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
| Network | |
| Incoming Bandwidth | 384 Mbps |
| Outgoing Bandwidth | 384 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, |
| NFS, RTSP, 802.1x, IPv6, IPv4 | |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
| Video/Audio Input | |
| RCA Audio Input | 1-ch |
| Video/Audio Output | |
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | HDMI1/VGA1:1/4/6/8/9/16/25/ 36/64, HDMI2/VGA2:1/4/6/8/9/16/25/36 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | |
| FTP/Schedule/Event Snapshot | 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
| Recording | |
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
| Smart | |
| VCA Detection by IPC | Face Detection, Face Comparison, Vehicle Detection, SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD), Temperature Detection (Fire Detection, Smoking Detection, Temperature Measurement, Smoke and Fire Detection), People Counting (People Flow Counting, Crowd Density Monitoring), Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle, Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Smart by IPC | All channels (up to 16 images/s in total)Face Detection, Face Comparison, Vehicle Detection, Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| Alarm | |
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space, Low, Hard Disk Full, Recording/Snapshot Abnormal |
| GUI Language | |
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia,Korean, Japanese, Latvian, Lithuanian, Persian |
| Hard Disk | |
| SATA | 8 SATA Interfaces |
| Capacity | Up to 16 TB for each HDD (The maximum HDD capacity varies with environment temperature) |
| Disk Group | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10 |
| Hot Swap | Support |
| External Interface | |
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Working Environment | |
| Working Temperature | -10 ℃ to 55 ℃ (14 ℉ to 131 ℉) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 35W |
| Dimensions | |
| Weight (without HDD) | ≤ 6Kg (13.23lb) |
| Dimensions | 442mm × 448mm × 93mm (17.4″ × 17.6″ × 3.7″) |
