Smart ip camera 4mp ZIP-AI5224FR-LED (for face recognition)
Smart ip camera 4mp ZIP-AI5224FR-LED with artificial intelligence . The built-in LED backlight allows you to recognize faces in low light. Wide dynamic range (120 dB), Full color , 3D DNR, AWB, AGC, BLC. This IP camera is designed for people recognition. The camera is equipped with a 1/1.8″ 4MP progressive scan CMOS sensor. The signal is encoded using several codecs: H.264/H.265/Ultra H.265, smart code . Minimum illumination at: 0.001 lux @ F1.6. The working temperature of the camera is from -30°C to +60°C, humidity 10-95%.
- Artificial Intelligence
- Classification of people and cars
- Face recognition
- Recognition in the dark hour of the day
- Wide dynamic range (120 dB)
- 3D DNR noise reduction system
Video
- The compression format is Ultra H.265/H.265/H.264
- Simultaneous transmission of three video streams
- Region of Interest ( ROI )
Compatibility
- ONVIF protocol support
- Ethernet RJ45
Terms of use
- Operating temperature from -30 to +60 °C
- Power supply 12 V DC or POE
- Degree of protection IP67
| Video camera | |||||
| Sensor | 1/1.8” 4Мп progressive scan CMOS | ||||
| Shutter | 2688 (H) × 1520 (V) | ||||
| RAM/ROM | 512 MB/128 MB | ||||
| Scanning system | Progressive | ||||
| Electronic shutter speed | Auto/manual, 1/3 s – 1/100000 s | ||||
| Sensitivity | 0.001 lux @ F1.6 | ||||
| Range of IR illumination | The distance is up to 20 m | ||||
| Control of IR illumination | Auto/manual | ||||
| IR illumination module | 2 | ||||
| Lens | |||||
| Lens type | fixed | ||||
| Fastening type | Built-in | ||||
| Focal length | 2.8 mm | ||||
| Max. aperture | F1.6 | ||||
| Viewing angle | Horizontal: 113 °, vertical: 60 ° / horizontal: 89 °, vertical: 48 ° / horizontal: 56 °, vertical: 31 ° | ||||
| DORI distances | Lens | Disclosure. | Observation. | Identif. | Recognition |
| 2.8 mm | 58 m | 23 m | 12 m | 4 m | |
| 3.6 mm | 72 m | 29 m | 14 m | 7 m | |
| 6.0 mm | 113 m | 45 m | 23 m | 11 m | |
| Artificial Intelligence | |||||
| Snapshots of face images | Face detector | ||||
| Perimeter protection | Line crossing, area control (classification of people and cars) | ||||
| Counting people | Support for line crossing/region/counting people in queues; support for independent detection of 4 connections, independent detection of 4 zones | ||||
| General functions of video analytics | |||||
| Actions during the event | Motion detection, lens close, scene change, network disconnection, IP address conflict, unauthorized access, storage error | ||||
| General functions | Left/missing items | ||||
| Video | |||||
| compression | H.265+, H.265, H.264+, H.264, H.264B, H.264H, | ||||
| MJPEG (additional stream) | |||||
| Streams | 3 streams | ||||
| Frame | 2688 × 1520/2560 × 1440/2304 × 1296/1080P (1920 × 1080)/1.3M (1280 × 960)/720P (1280 × 720)/D1 (704 × 574/40 )/CIF (352 × 288/352 × 240) | ||||
| Frame rate | Main stream: 2688 × 1520 (1 fps – 25/30 fps) | ||||
| 2560 × 1440 (1 fps – 25/30 fps) | |||||
| 1920 × 1080 (1 fps – 50/60 fps) | |||||
| Additional stream 1: D1 (1 k/s – 25/30 k/s) | |||||
| D1 (1 fps – 50/60 fps) | |||||
| Additional Stream 2: 1080P (1fps – 16fps) | |||||
| Bitrate management | CBR/VBR | ||||
| Bitrate | H.264: 32 Kbit/s – 8192 Kbit/s | ||||
| H.265: 19 Kbit/s – 8192 Kbit/s | |||||
| Day/night mode | “Day/Night”: electronic | ||||
| Auto (ICR) / Color / B/W | |||||
| Backlight compensation mode | BLC/HLC/WDR (140 dB) | ||||
| White balance | Auto/natural/street light/street/manual | ||||
| Signal amplification | Auto/manual | ||||
| Noise suppression | 3D DNR | ||||
| Motion detection | Yes (4 zones, rectangle) | ||||
| Area of interest | Yes (4 zones) | ||||
| Electronic Image Stabilization (EIS) | N/A | ||||
| Intelligent IR illumination | Support | ||||
| “Anti-fog” function | Support | ||||
| Digital zoom | N/A | ||||
| Image rotation | 0°/90°/180°/270° | ||||
| Mirror | So | ||||
| Private areas | Yes (4 zones, rectangle) | ||||
| audio | |||||
| compression | G.711a, G.711Mu, G.726, AAC, G.723 | ||||
| Chain | |||||
| Ethernet | RJ-45 (10/100 Base-T) | ||||
| Protocols | HTTP, TCP, ARP, RTSP, RTP, UDP, RTCP, SMTP, | ||||
| FTP, DHCP, DNS, DDNS, PPPoE, IPv4/v6, SNMP, QoS, | |||||
| UPnP, NTP, ICMP, HTTPS, IGMP, 802.1x | |||||
| Compatibility | ONVIF (Profile S/Profile G), CGI, Milstone, Genetec, P2P | ||||
| Stream transfer method | Unicast/multicast | ||||
| Max. number of connections | 20 users | ||||
| Local storage | NAS | ||||
| FTP | |||||
| Micro SD memory card 256 GB | |||||
| Web interface | IE (versions later than IE8), Chrome, | ||||
| Firefox, Safari (versions later than Safari 12) | |||||
| Software | ZetPro VMS, CaMaP | ||||
| Interfaces | |||||
| Video interface | N/A | ||||
| Audio interface | Built-in microphone | ||||
| RS485 | N/A | ||||
| Alarm inputs/outputs | N/A | ||||
| Power supply | |||||
| Power | DC 12 V (±30 %), PoE (802.3af) (class 0) | ||||
| power consumption | < 7.2 W | ||||
| Terms of use | |||||
| Working conditions | -30°C – +60°C / relative humidity 10-95% | ||||
| Storage conditions | -30°C – +60°C | ||||
| protection class | IP67 | ||||
| Construction | |||||
| Corps | Metal | ||||
| Dimensions | Φ106 mm × 99.2 mm | ||||
| Net weight | 0.55 kg | ||||
| Gross weight | 0.71 kg | ||||
Related products

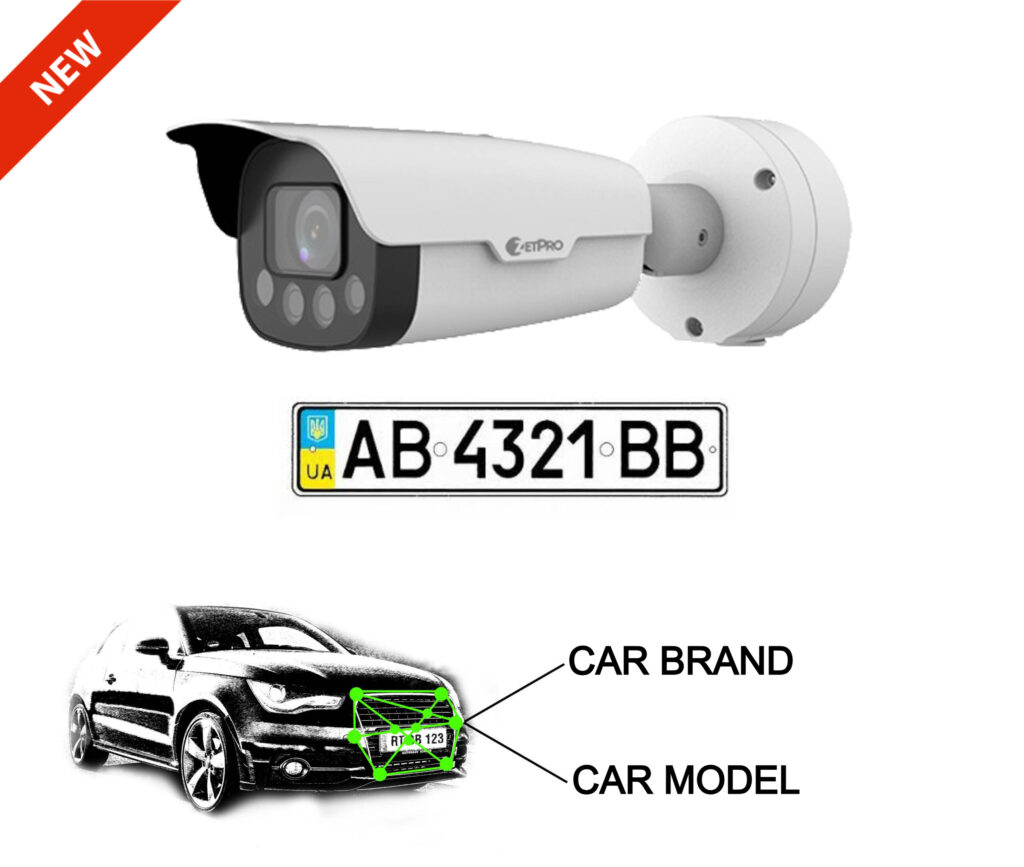

Smart ip camera 5mp ZIP-1025EBR-SRPRO-DUPZ
