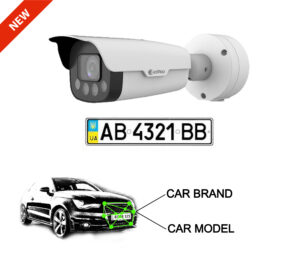

Smart IP camera 5mp ZIP-5100LPR-AI12CP (LPR onboard)
Smart IP camera 5MP ZIP-5100LPR-AI12CP with built-in license plate recognition is designed for high-speed vehicle plate detection and equipped with a 1/2.8” 2MP progressive CMOS sensor.
Features 120 dB WDR, HLC function, and multi-codec signal encoding (H.264 / H.265 / Ultra H.265).
Minimum illumination: 0.001 lux. Supports MicroSD, ANR, and Audio.
Operating temperature range: –40 °C to +60 °C, humidity 10–95%.
Motorized lens with 12× optical zoom. IR illumination distance up to 100 m.
-
Mechanical IR-cut filter (Day/Night)
-
Adaptive IR illumination with a range up to 100 m
-
3D DNR noise reduction system
Video
-
Compression format: Ultra H.265 / H.265 / H.264 / MJPEG
-
Built-in video analytics
-
Simultaneous transmission of three video streams
-
ROI (Region of Interest)
-
HLC (High Light Compensation)
Audio
-
— (no specific details provided)
Compatibility
-
ONVIF protocol supported
Operating Conditions
-
Operating temperature: –40 °C to +60 °C
-
Power supply: 12V DC or PoE
-
Protection level: IP67
Built-in Analytics:
-
LPR system for automatic license plate recognition (on-board)
-
Recognition speed: up to 40 m/s
-
On-board vehicle make recognition
-
On-board vehicle model recognition
-
On-board vehicle color recognition
-
Database of over 800 vehicle makes and models
| Camera | |
| Sensor | 1/2.7-inch CMOS sensor |
| Min. illumination | Colour: 0.001 lux (F1.6, AGC on), 0 lux with IR illumination |
| Day/Night | IR filter with automatic switching (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| Adjustment angle | Pan: 0° to 360°, tilt: 0° to 90°, rotation: 0° to 360° |
| S/N | >56 dB |
| Lens | |
| Focal length | 5 to 60 mm |
| Digital zoom | 16X |
| Optical zoom | 12X |
| Iris | F1.6 |
| Field of view (H) | 59.99° to 5.73 |
| Field of view (V) | from 35.03° to 3.39° |
| Field of view (D) | from 67.01° to 6.61° |
| Iris type | DC iris |
| DORI | |
| DORI distance (lens) | 5 to 60 mm |
| DORI distance (detection) | from 119.3 m to 1417.5 m (from 391.2 ft to 4650.6 ft) |
| DORI distance (observation) | from 47.7 m to 567.0 m (from 156.5 ft to 1860.2 ft) |
| DORI distance (recognition) | from 23.9 m to 283.5 m (from 78.2 ft to 930.1 ft) |
| DORI distance (identify) | from 11.9 m to 141.8 m (from 39.1 ft to 465.1 ft) |
| Video | |
| Video compression | Ultra 265, H.265, H.264, MJPEG |
| Video bit rate | 128 Kbps to 16 Mbps |
| Smart code | Support |
| ROI | Support |
| Video stream | Triple streams |
| Privacy mask | Up to 4 zones |
| On-screen menu | Up to 10 on-screen menus |
| Frame rate – main stream | 5 MP (2880 × 1620), max. 30 frames/s |
| Frame rate – sub-stream | 1080P (1920 × 1080), max. 30 frames/s |
| Frame rate – third stream | D1 (720 × 576), max. 30 frames/s |
| Smart | |
| Application scenario | Vehicle speed ≤190 km/h |
| Vehicle detection mode | Video |
| Number plate type | Standard, inverted, narrow-angle |
| Licence plate recognition | By default, recognition of number plates with numbers and letters is supported |
| List configuration | Supports white and black list configuration |
| Additional features | Car make and model recognition |
| Image | |
| White balance | Auto, Outdoor mode, Fine tuning, Sodium lamp, Locked, Auto2 |
| Digital noise reduction | 2D/3D DNR |
| Rotation | Normal, Display vertically, Display horizontally, 180°, 90° clockwise, 90° counterclockwise |
| HLC | Support |
| BLC | Support |
| Smart IR illumination | Support |
| Detumming | Digital anti-fog |
| Heat wave reduction | Support |
| Events | |
| Basic detection | Motion detection, intrusion alarm, sound detection, object removal, object left behind |
| General function | Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, HTTP authentication, alarm input |
| Audio | |
| Audio compression | G.711U, G.711A |
| Audio bit rate | 128 Kbps |
| Two-way audio communication | Support |
| Suppression | Support |
| Sampling frequency | 16 kHz |
| Storage | |
| Peripheral storage | MicroSD, up to 512 GB |
| Network storage | ANR, NAS (NFS) |
| Network | |
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, normal user and operator |
| Security | TLS 1.3, password protection, strong password, HTTPS encryption, operation log export, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF |
| Client | Guard Live, Guard Station, ZetPro VMS |
| Web browser | Real-time viewing requiring a plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, real-time viewing without a plug-in: Chrome 57+, Firefox 58+, Edge 16+ |
| Illuminator | |
| Illumination range (IR) | 100 m (328.1 ft) |
| IR on/off control | Automatic/Manual |
| Wavelength | 850 nm |
| Interface | |
| Audio input/output | 1 Input: impedance 1 kOhm, amplitude 2.5 V [pics.], 1 Output: impedance 600 Ohm, amplitude 2.5 V [pics. |
| Alarm input/output | 2/1 |
| Serial port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video output | 1 BNC (for debugging) |
| General | |
| Power | 12 V DC (±25%), PoE+ (IEEE 802.3at) |
| Power consumption | Max. 13 W |
| Power interface | Ø5.5 mm coaxial power connector |
| Dimensions | 354 mm × 105 mm × 98 mm (13.9 inches × 4.1 inches × 3.9 inches) (L × W × H) |
| Weight | 1.93 kg (4.25 lb) |
| Operating environment | -40°C to 60°C (-40°F to 140°F), humidity: ≤ 95% relative humidity (non-condensing) |
| Storage environment | -40°C to 70°C (-40°F to 158°F), humidity: ≤ 95% relative humidity (non-condensing) |
| Surge protection | 6 kV |
| Reset button | Support |
| Web client language | 21 languages: English, Chinese, Polish, German, Ukrainian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Heater | Support |
