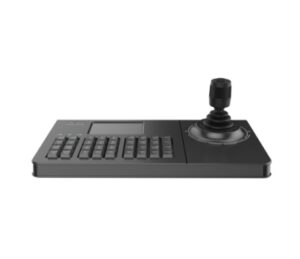

Control panel ZIP-NK-4DS4
ZIP-NK-4DS4 is a professional network keyboard designed for video surveillance control. It features a 4-inch display, high-precision 4D joystick, supports PTZ control, video wall operation, and multi-level user access. With a compact design and intuitive interface, it ensures accuracy, stability, and user-friendly experience.
ZIP-NK-4DS4 offers convenient and efficient control over surveillance cameras and video systems with features like:
-
4-inch display providing high-detail video preview;
-
4D joystick enabling pan, tilt, focus, and zoom control of PTZ cameras;
-
Simple button layout for comfortable long-term use;
-
Video wall support for managing multi-screen output;
-
Built-in power button for quick on/off control;
-
Keyboard lock functionality;
-
Configurable user permission levels;
-
Multiple interface options: RS232, RS485, RJ45, USB, and Console port;
-
Reliable build with low power consumption.
| Model | ZIP-NK-4DS4 |
| Screen Size | 4 inches |
| Joystick | 4D joystick |
| Dimensions (W × H × D) | 345.00 × 189.82 × 128.16 mm |
| Serial Port | 1 × RS232, 2 × RS485 |
| Console Port | 1 × RJ45 (shared with RS485) |
| USB Ports | 2 × USB |
| Network Interface | 1 × RJ45, 10/100/1000М |
| Max Power Consumption | < 5 W |
| Power | DC 12 V |
| Weight | 1.2 kg |
| Operating Temperature | -10°C ~ +55°C |
| Operating Humidity | 10% ~ 90% RH (non-condensing) |
| Reset Button | 1 × Reset button |
